Product Introduction

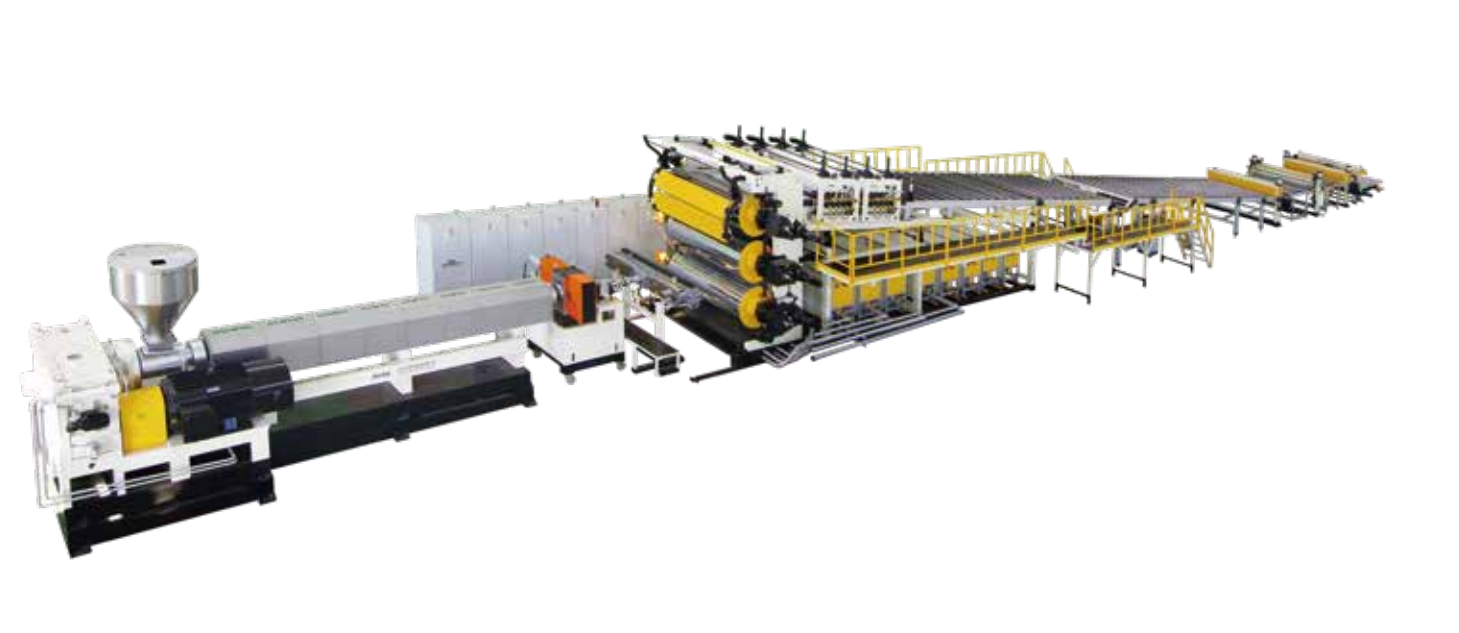

JWELL-PP/PE/ABS/PVC/PVDF Thick Plate Extrusion Line

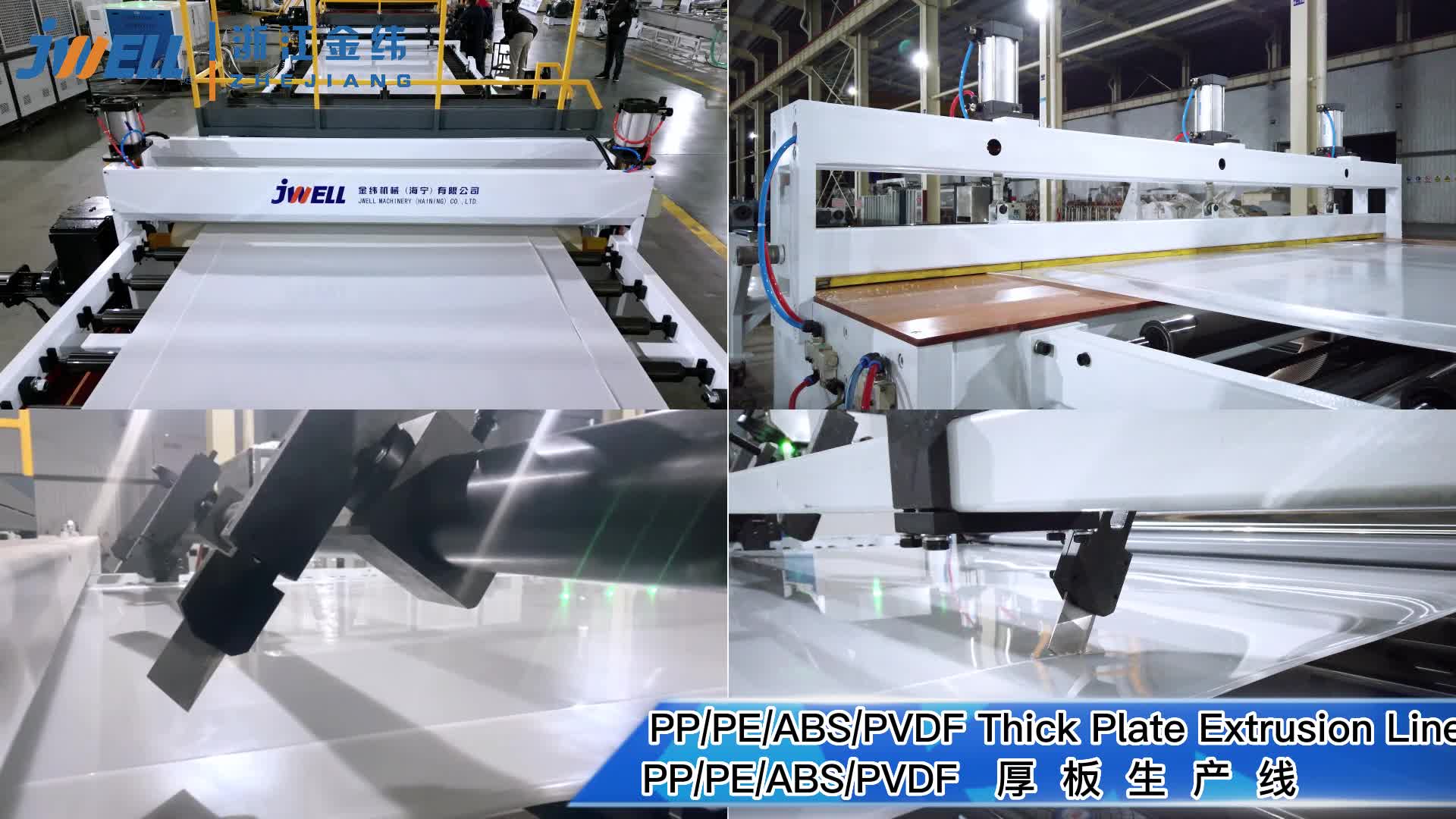

PVDF thick plate line (6).jpg

PP thick plate extrusion line,PP thick plate, is an environmentally-friendly product and is widely applied in chemistry industry, food industry, anti-erosion industry, environmentally-friendly equipments industry, etc. PP thick plate extrusion line of 2000mm width is a newly developed line which is the most advanced and stable line compared with other competitors.

PE thick plate extrusion line ,PE plate is widely applied in chemical and electric power industries. HDPE plate, known as engineering plastics, is used in mechanical and chemical equipments as well as ice hockey ring walls.
Main technical parameters

ModelJW150-2000JW170-2000JW180-2600
Suitable materialPP,PEPP,PEPP,PE
Products width1200-1500mm1200-1500mm1500-2000mm
Products thickness3-30mm3-30mm3-30mm
Extruder modelΦ150/35Φ170/35Φ180/35
Designed capacity500kg/h700kg/h800kg/h

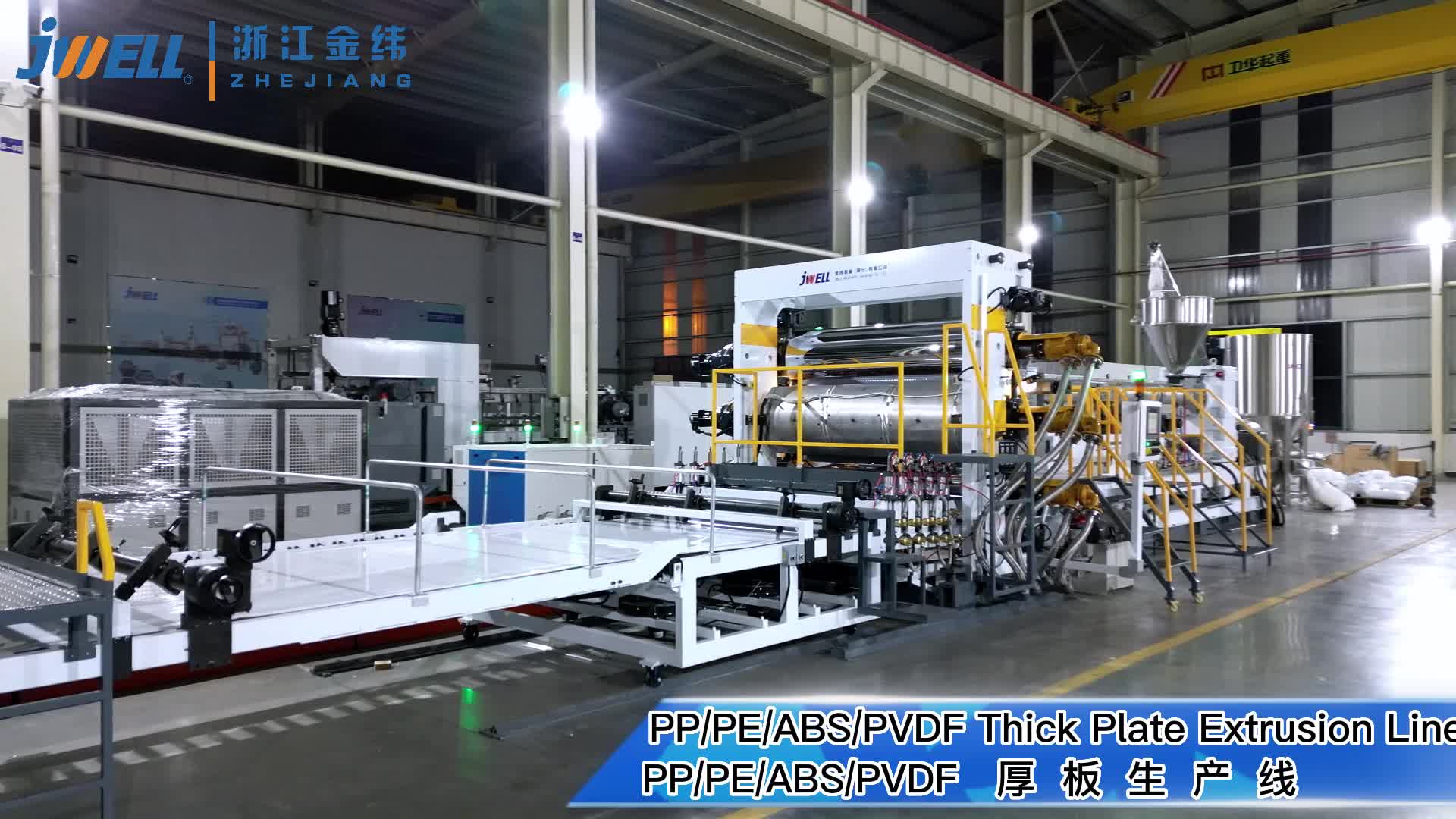

PVDF thick plate line (4).jpg

Machine technical Parameter
ModeJWS150-2100JWS170-2700JWS170+WS90-3200JWS170+JWS120-3800
Products Width1220-15001500-20002000-25002500-3000
Extruder ModelJWS150/35JWS170/38JWS170+JWS90JWS170+WS120
Products Thickness(mm)3-303-403-403-40
Main motor power(kw)250280280/75280/132
Capacity (Max.)450-550700-800800-1000900-1100


Machine running video

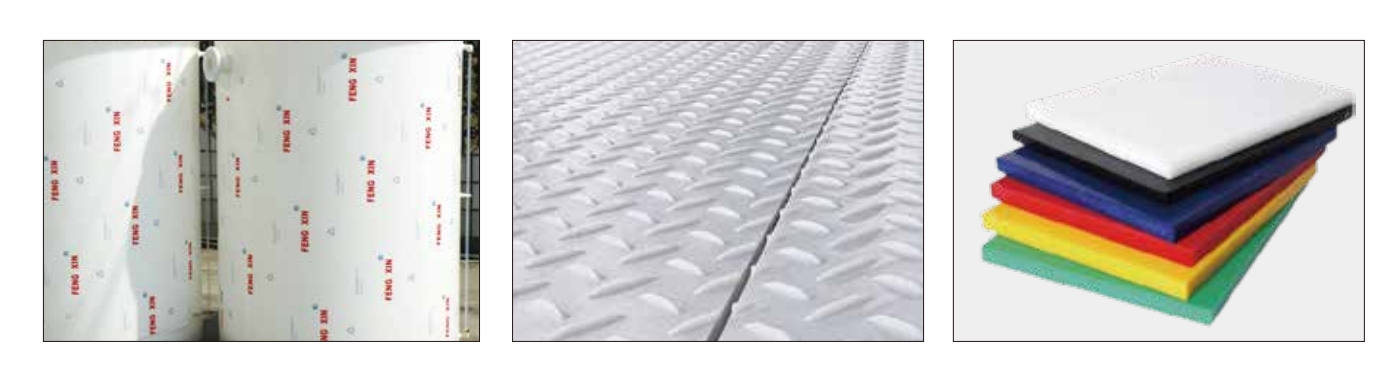

End product application area

PP,PE thick plate extrusion line (3)-.png

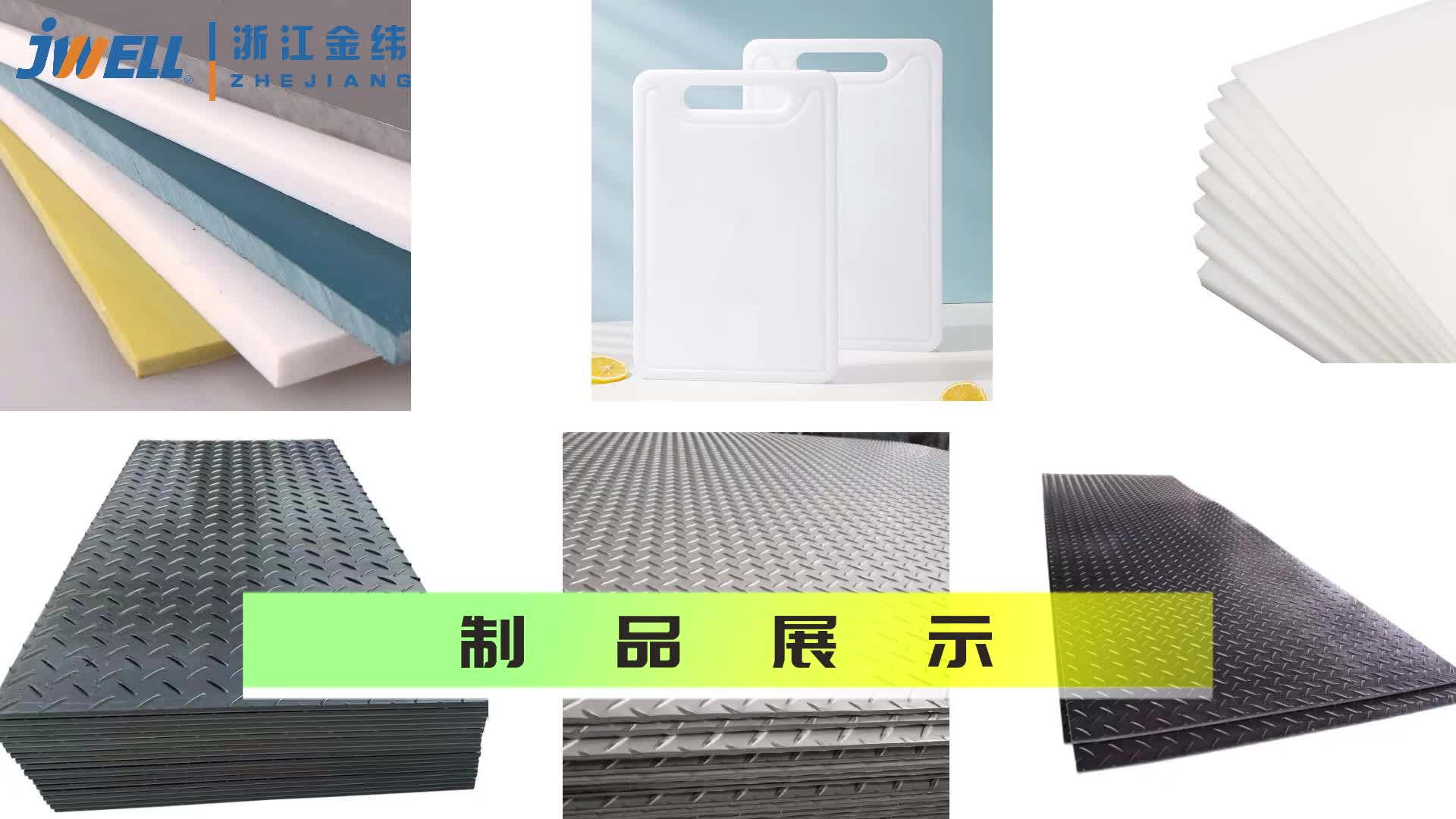

PVDF thick plate line (3).jpg

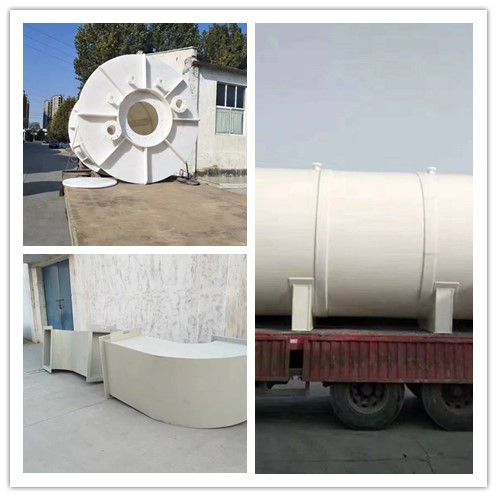

PP,PE thick plate extrusion line (8).jpg
