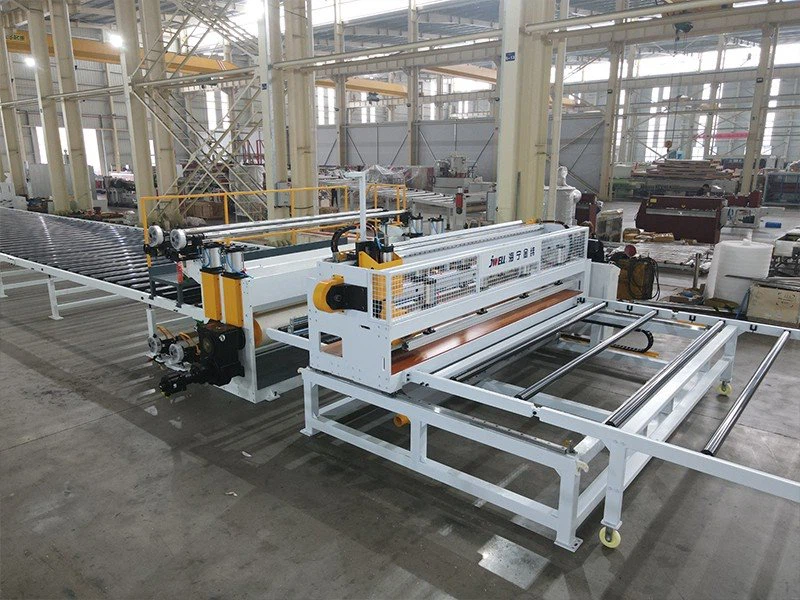

PVDF Thick Plate and PP PE Board Extrusion Line Features
Advanced Screw Structure – Adopts a new screw design to enhance material plasticization and achieve large output extrusion capacity.
Mirror Calendering Rollers – Provide efficient cooling and shaping, while significantly improving surface smoothness and sheet quality.
Multi-Roller Cooling & Shaping – Multiple sets of rollers ensure rapid cooling, precise shaping, and improved sheet flatness.
Dust-Free Trimming & Cutting – Longitudinal trimming blades simplify operation and reduce dust; optional horizontal milling cutter cutting further avoids dust pollution.
High-Precision Control System – Equipped with frequency conversion and servo control for efficient, precise operation. The HMI interface allows real-time parameter preview, quick adjustments, and one-key linkage, enhancing convenience and reliability.
Remote Smart Service – 24-hour online service for fault diagnosis, error analysis, and troubleshooting, minimizing downtime during debugging and production.
Reference Technical Data
|
Model |
JW150-2000 |
JW170-2000 |
JW180-2600 |
|
Suitable material |
PP,PE |
PP,PE |
PP,PE |
|
Products width |
1200-1500mm |
1200-1500mm |
1500-2000mm |
|
Products thickness |
3-30mm |
3-30mm |
3-30mm |
|
Extruder model |
Φ150/35 |
Φ170/35 |
Φ180/35 |
|
Designed capacity |
500kg/h |
700kg/h |
800kg/h |
|
Mode |
JWS150-2100 |
JWS170-2700 |
JWS170+WS90-3200 |
JWS170+JWS120-3800 |
|
Products Width |
1220-1500 |
1500-2000 |
2000-2500 |
2500-3000 |
|
Extruder Model |
JWS150/35 |
JWS170/38 |
JWS170+JWS90 |
JWS170+WS120 |
|
Products Thickness(mm) |
3-30 |
3-40 |
3-40 |
3-40 |
|
Main motor power(kw) |
250 |
280 |
280/75 |
280/132 |
|
Capacity (Max.) |
450-550 |
700-800 |
800-1000 |
900-1100 |
PVDF Thick Plate and PP PE Board Extrusion Line Product Applications
Chemical & Anti-Corrosion Equipment – PVDF and HDPE plates are widely used in chemical reactors, storage tanks, and pipeline linings due to their resistance to strong acids and alkalis.
Semiconductor & Pharmaceutical Industry – PVDF plates ensure ultra-clean, additive-free performance for ultrapure water systems, cleanrooms, and pharmaceutical processing.
Environmental Protection – PP and PE plates are used in wastewater and exhaust gas treatment equipment, with excellent impact resistance and weather stability.
Mechanical & Sports Applications – HDPE plates, known for their strength and toughness, are ideal for machine guards and even ice hockey rink boards.
Food Industry – Food-grade PP plates are commonly applied in food processing machinery and hygienic equipment housings.
