Product Description

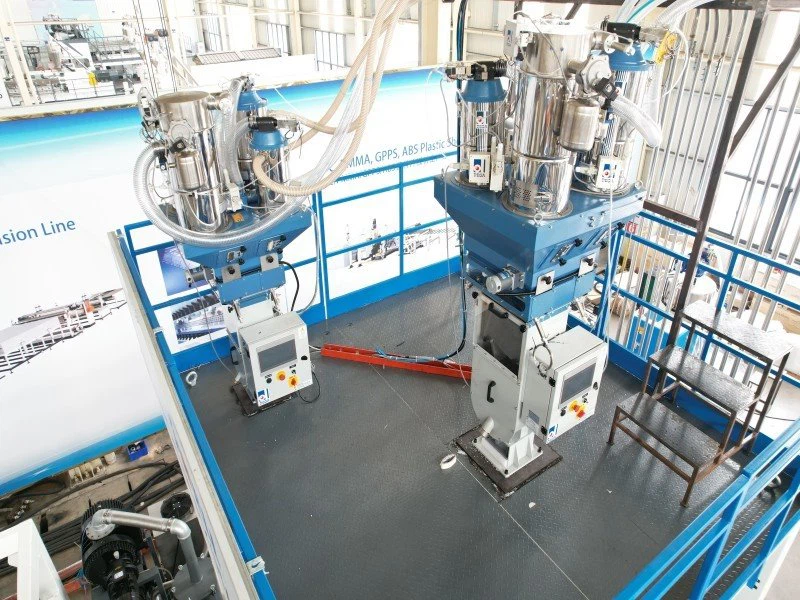

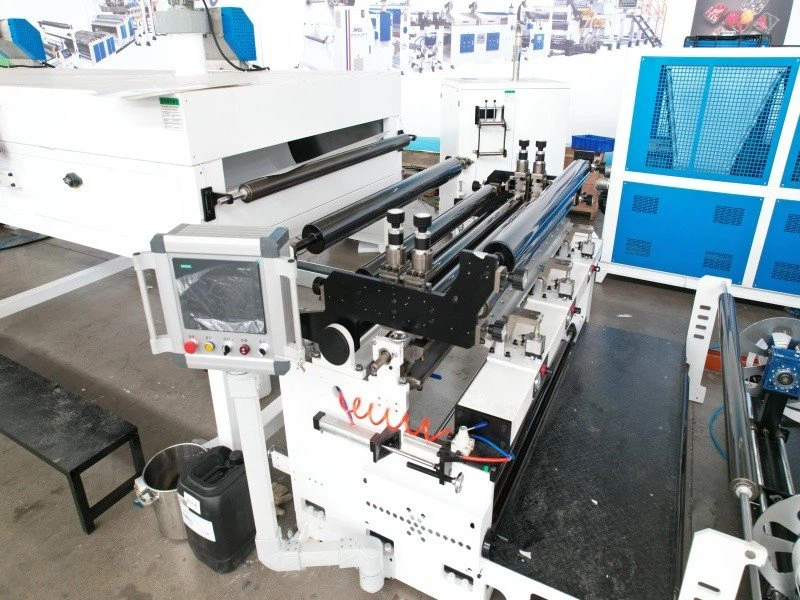

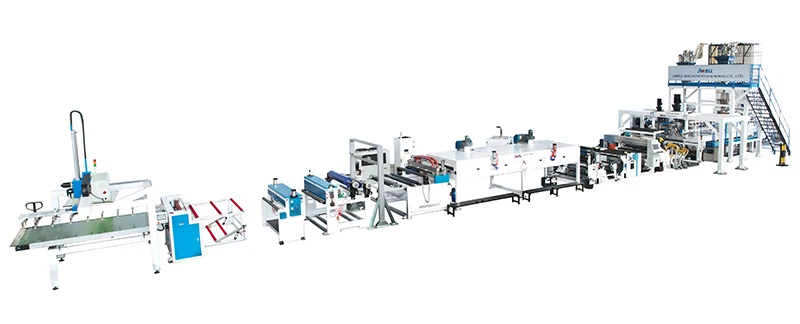

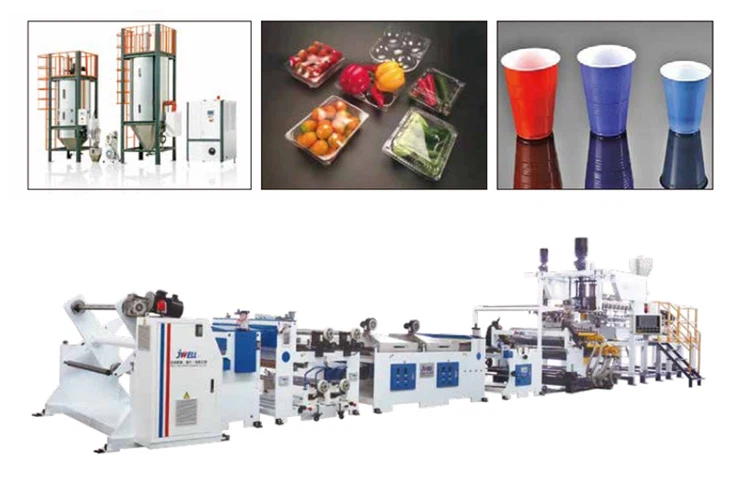

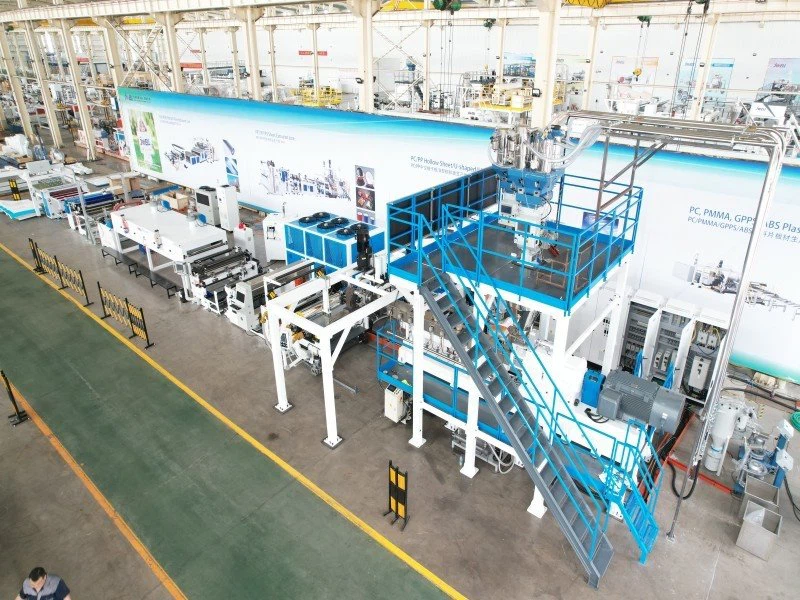

This PET GAG sheet extrusion machine supports both virgin PET resin and high percentages (up to 90%) of recycled PET flakes, meeting the growing demand for sustainable packaging solutions. The symmetrical thin-wall calender roller design ensures efficient cooling, delivering sheets with precise thickness from 0.15mm to 1.5mm and widths up to 1100mm. Multi-component dosing feeders provide accurate control over virgin, recycled, and masterbatch material ratios, ensuring consistent sheet quality across production batches.
Key Advantages
- High Output with Energy Efficiency – Screw designs with bimetallic barrels provide excellent wear resistance and plasticizing performance, achieving capacities ranging from 400kg/h to over 1200kg/h.
- Superior Sheet Quality – Produces high-gloss, uniform sheets with outstanding optical clarity, suitable for demanding thermoforming and printing applications.
3. Versatile Material Compatibility – PET GAG sheet extrusion machine Capable of processing PET, APET, PETG, and GAG materials, covering applications from food-grade packaging to industrial protective sheets.
4. Sustainability & Cost Reduction – Optimized for recycled PET processing without compromising mechanical or visual properties, lowering production costs while supporting environmental goals.
PET GAG sheet extrusion machine Application Scenarios

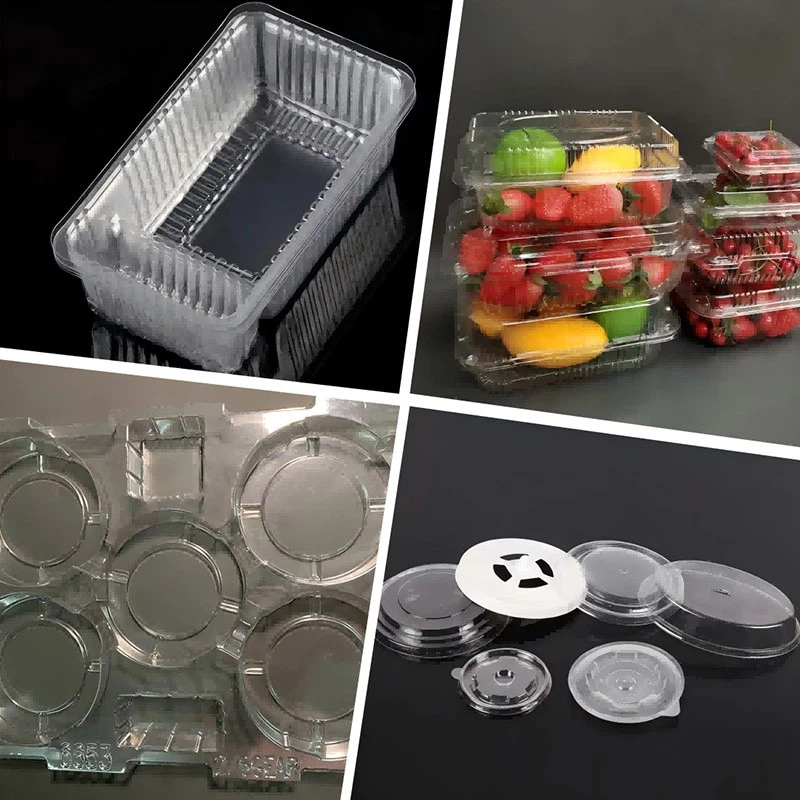

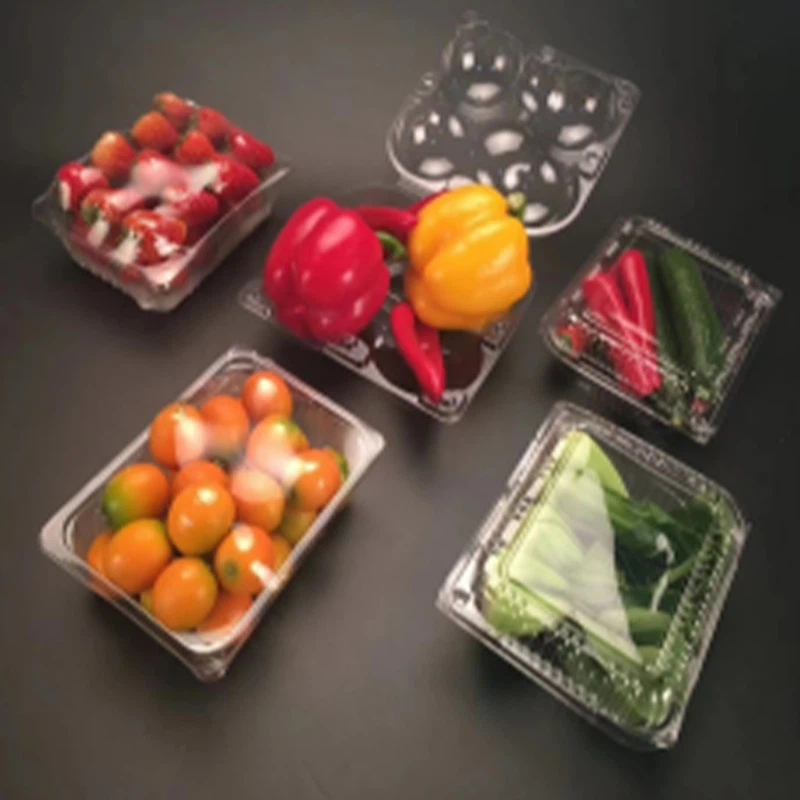

Food and Beverage Packaging – Cups, lids, trays, and clamshells requiring excellent hygiene and safety compliance.

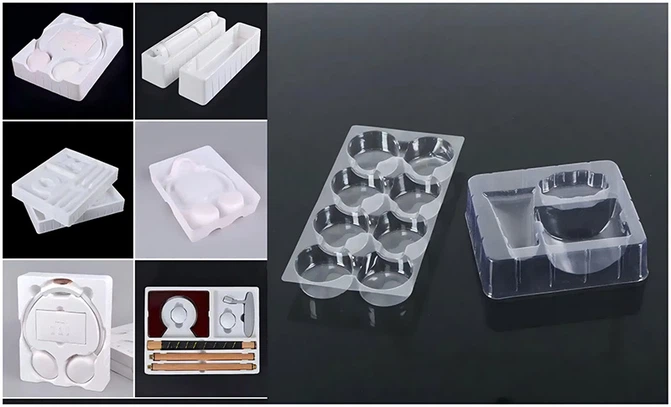

Medical & Electronics Packaging – Precision thermoformed trays and protective covers, with options for anti-static or coated surfaces.
Reference Technical Data
|
Model |
JWP75-1000 |
JWP85/65-1300 |
JWP95/75-1300 |
JWP85-1300 |
JWP95-1300 |
|
Material |
APET,PETG,CPET |
||||
|
Extruder Specification |
JWP75 |
JWP85+JWS65 |
JWP95+JWS75 |
JWP85 |
JWP95 |
|
Products width |
800mm |
1100mm |
1100mm |
1100mm |
1100mm |
|
Products Thickness |
0.15-1.5mm |
0.15-1.5mm |
0.15-1.5mm |
0.3-0.9mm |
0.3-0.9mm |
|
Capacity (Max.) |
400-500kg/h |
700-800kg/h |
1000-1200kg/h |
500-600kg/h |
700-800kg/h |
|
Model |
Extruder model |
Products thickness(mm) |
Main motor power(kw) |
Max extrusion Capacity(kg/h) |
|
Single layer |
JW75/40-1000 |
0.15-1.5 |
132 |
400-500 |
|
High-speed single layer |
JW75/42-1000 |
0.15-1.5 |
160 |
500-600 |
|
Multi layer |
JW75&52/40-1000 |
0.15-1.5 |
132/15 |
500-600 |
|
Highly-efficient |
JW95&65/44-1500 |
0.15-1.5 |
250/75 |
800-1000 |
How To Get A Technical Offer
1. Material type and its conditions: Virgin or recyled PET, flakes or pellets
2. The final PET sheet width in mm
2. The thickness of PET sheet in MM
3. The output capacity required
4. The final application of the sheet
5. The sheet structure, one layer sheet or multi-layers sheet (A/B, A/B/A, B)
