Product Description
Recognized as an eco-friendly material, PLA is produced through a pollution-free process and can naturally degrade and be recycled. It offers excellent thermal stability with a processing range of 170–230 ℃, strong solvent resistance, and outstanding product properties including gloss, transparency, smooth touch, heat resistance, biocompatibility, antibacterial performance, flame retardancy, and UV resistance. These features make PLA sheets widely applied in packaging for fruits, vegetables, eggs, bakery goods, sandwiches, cookies, and flowers.

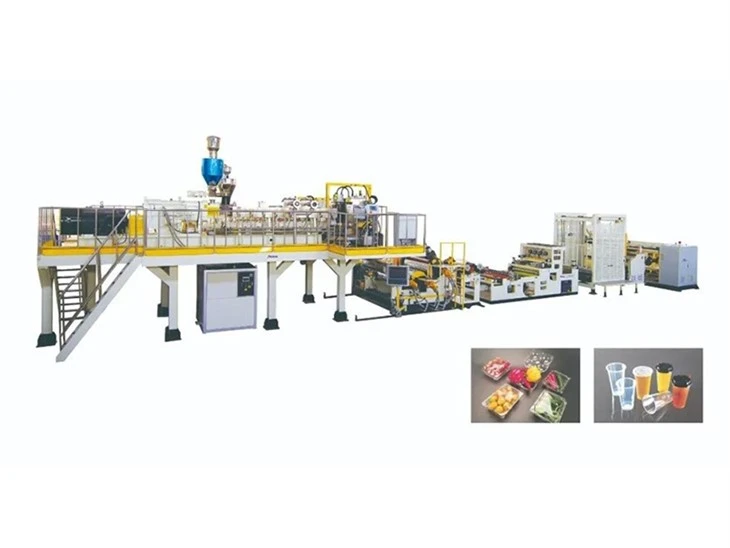

Our PLA Degradable Sheet Extrusion Line is engineered to transform this sustainable material into high-quality sheets for packaging and thermoforming applications. The line adopts JWELL parallel twin screw extrusion technology, featuring vacuum degassing and a drying-free design that significantly reduces energy consumption. With optimized screw structure and precise temperature control, the extrusion process ensures minimal viscosity loss and consistent sheet performance.
Single screw PET Extruder Line Parameters
|
PET Sheet/film making machine |
Multi layer coextrusion PET |
Single layer PET |
High efficient |
|
Extruder model |
JW120/65-1000 |
JW120-1000 |
JW150-1500 |
|
Thickness for PET sheet/film |
0.15-1.5mm |
0.15-1.5mm |
0.15-1.5m |
|
Main motor power |
132kw/45kw |
132kw |
200kw |
|
Max production output for PET sheet/flm making machine |
600-700kg/h |
550-650kg/h |
800-1000kg/h |
|
Model |
JWP75-1000 |
JWP85/65-1300 |
JWP95/75-1300 |
JWP85-1300 |
JWP95-1300 |
|
Material |
APET,PETG,CPET |
||||
|
Extruder Specification |
JWP75 |
JWP85+JWS65 |
JWP95+JWS75 |
JWP85 |
JWP95 |
|
Products width |
800mm |
1100mm |
1100mm |
1100mm |
1100mm |
|
Products Thickness |
0.15-1.5mm |
0.15-1.5mm |
0.15-1.5mm |
0.3-0.9mm |
0.3-0.9mm |
|
Capacity(Max.) |
400-500kg/h |
700-800kg/h |
1000-1200kg/h |
500-600kg/h |
700-800kg/h |
Machine List
|
1. Complete material Feeding loading system |
1 set |
2. Single/Twin screw extruder |
1 set |
|
|
3. Screen changer |
1 set |
4. Gear pump |
1 set |
|
|
5. T-Die |
1 unit |
6. Three roller calendr |
1 set |
|
|
7. Temperature controller |
1 unit |
8. Edge trimming and winding |
1 set |
|
|
9. Silicone coating unit |
1 unit |
10. Over dryer |
1 set |
|
|
11. Film lamination unit |
1 unit |
12. Haul-off device |
1 set |
|
|
13. Winder |
1 unit |
14. Electric control system |
1 set |
|
|
15. Spare parts |
1 set |
16. If necessary, we will provide the auxiliary equipment |
FAQ
Q1: What sheet dimensions can your extrusion line achieve?
A1: Our PLA Degradable Sheet Extrusion Line is engineered to produce HIPS sheets up to 2100 mm in width, with thicknesses ranging from 1 mm to 12 mm. We also offer tailored solutions to match specific dimensional requirements from different industries.
Q2: How do you maintain consistent sheet quality during production?
A2: We adopt a combination of precision-engineered screws, optimized die head structures, and automated calibration technology. Each production run is monitored through a strict quality management process to ensure uniform thickness, excellent surface smoothness, and reliable mechanical strength.
Q3: Is the PLA Degradable Sheet Extrusion Line designed to reduce energy consumption?
A3: Yes. The system incorporates high-efficiency drive motors, refined heating modules, and smart control algorithms. These innovations help lower electricity usage while keeping production speed and output levels stable.
Q4: What kind of technical support and services do you provide after installation?
A4: We deliver a complete service package, including on-site commissioning, operator training programs, preventive maintenance plans, and round-the-clock technical assistance. We also maintain a ready stock of critical spare parts to ensure fast replacement and minimal downtime.
